SPM for Tube Processing

SPM for Tube Processing

These Special Purpose Machines are designed for precision tube and rod processing tasks that demand consistency, speed, and accuracy. Whether it’s preparation, finishing, or material cutting, each machine is engineered to handle industrial production requirements with minimal operator intervention.

spm

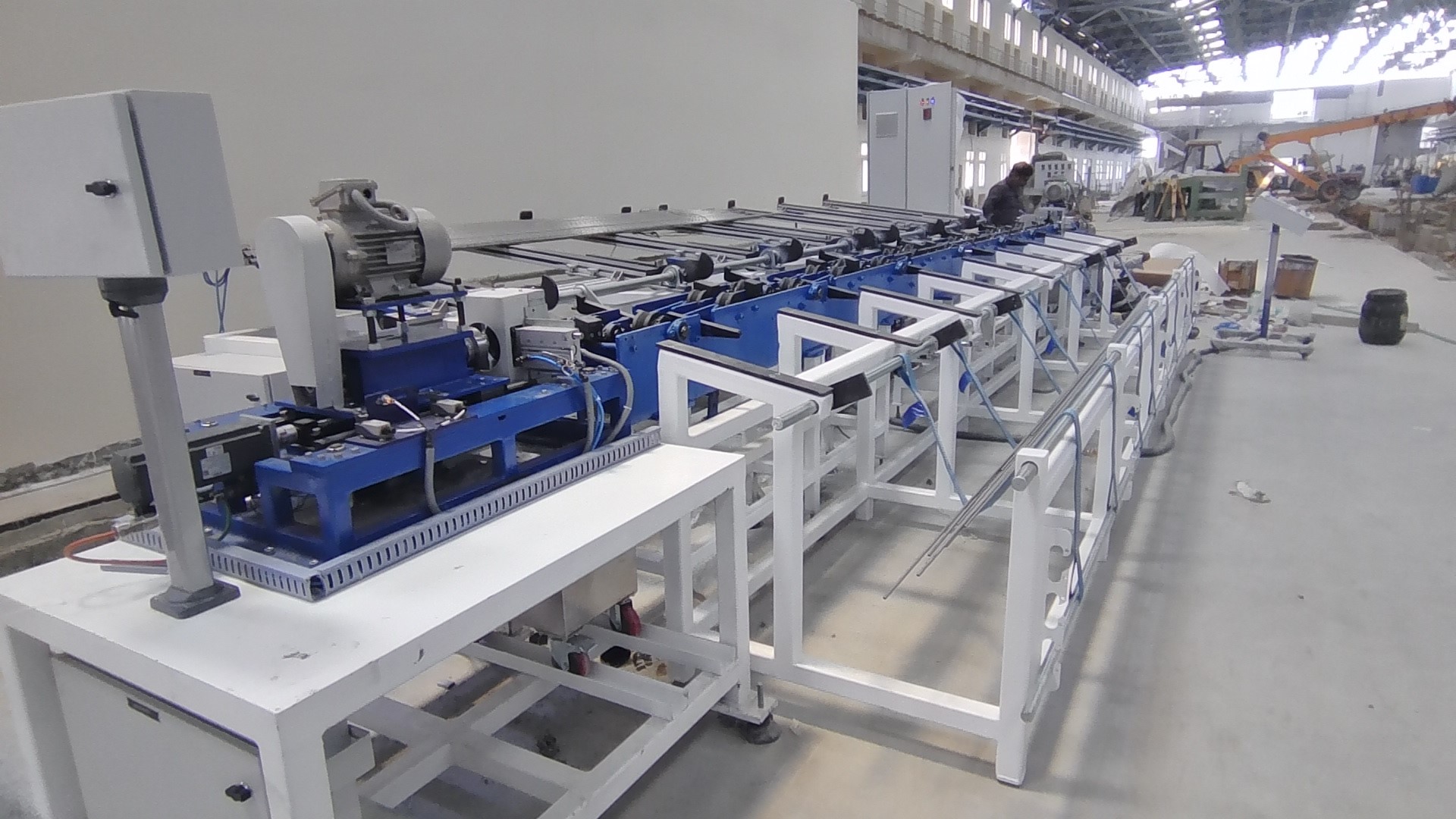

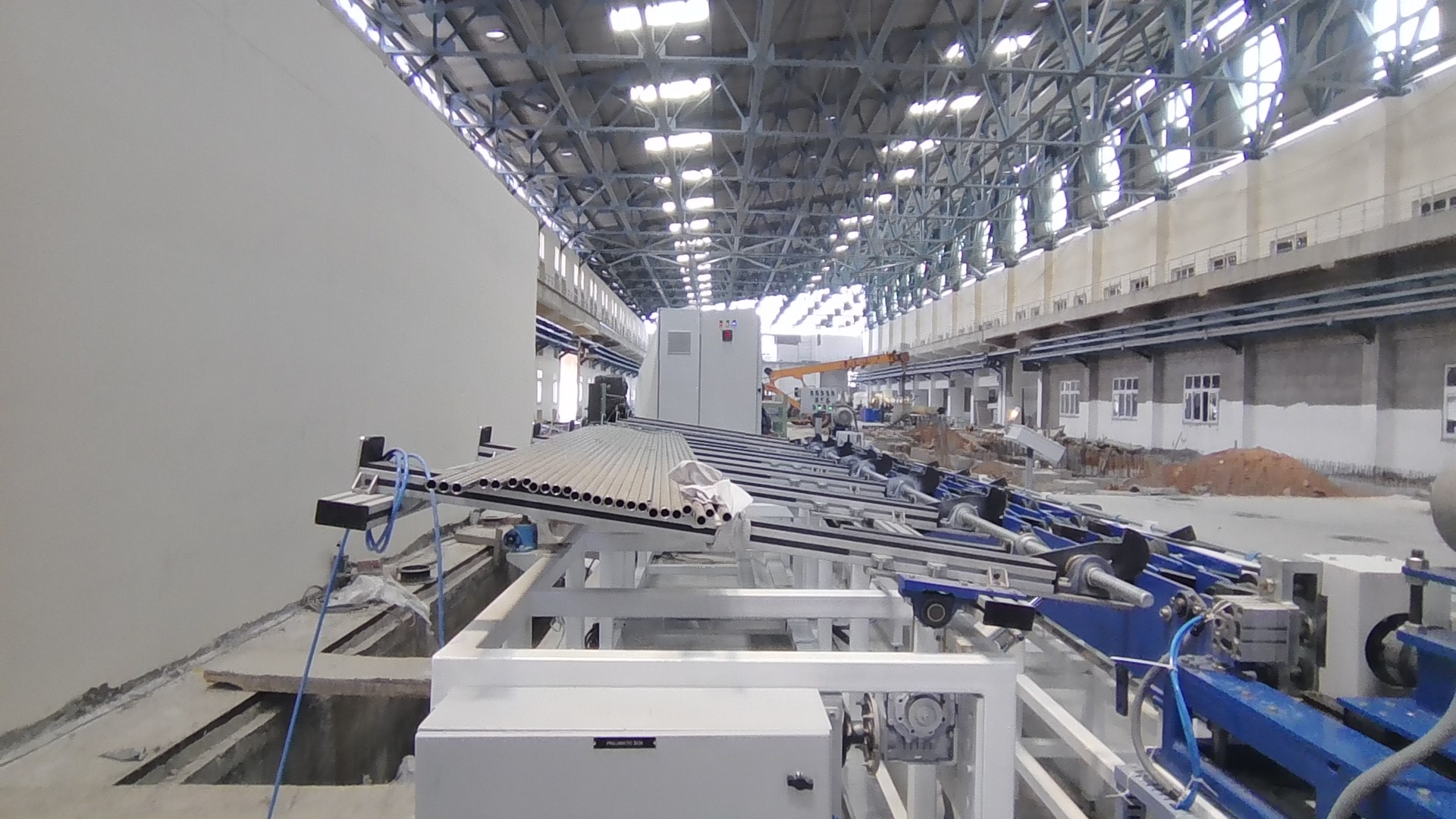

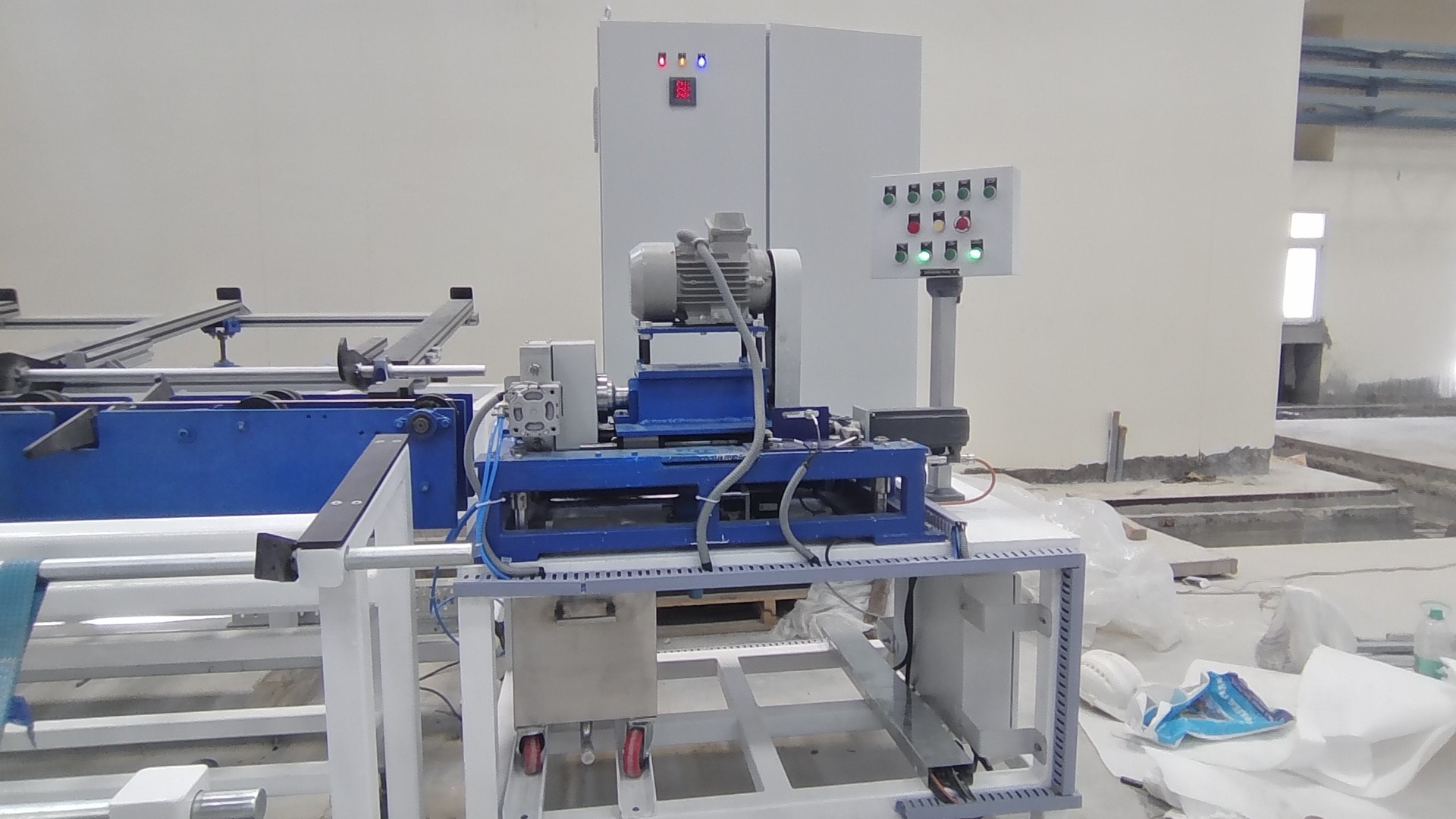

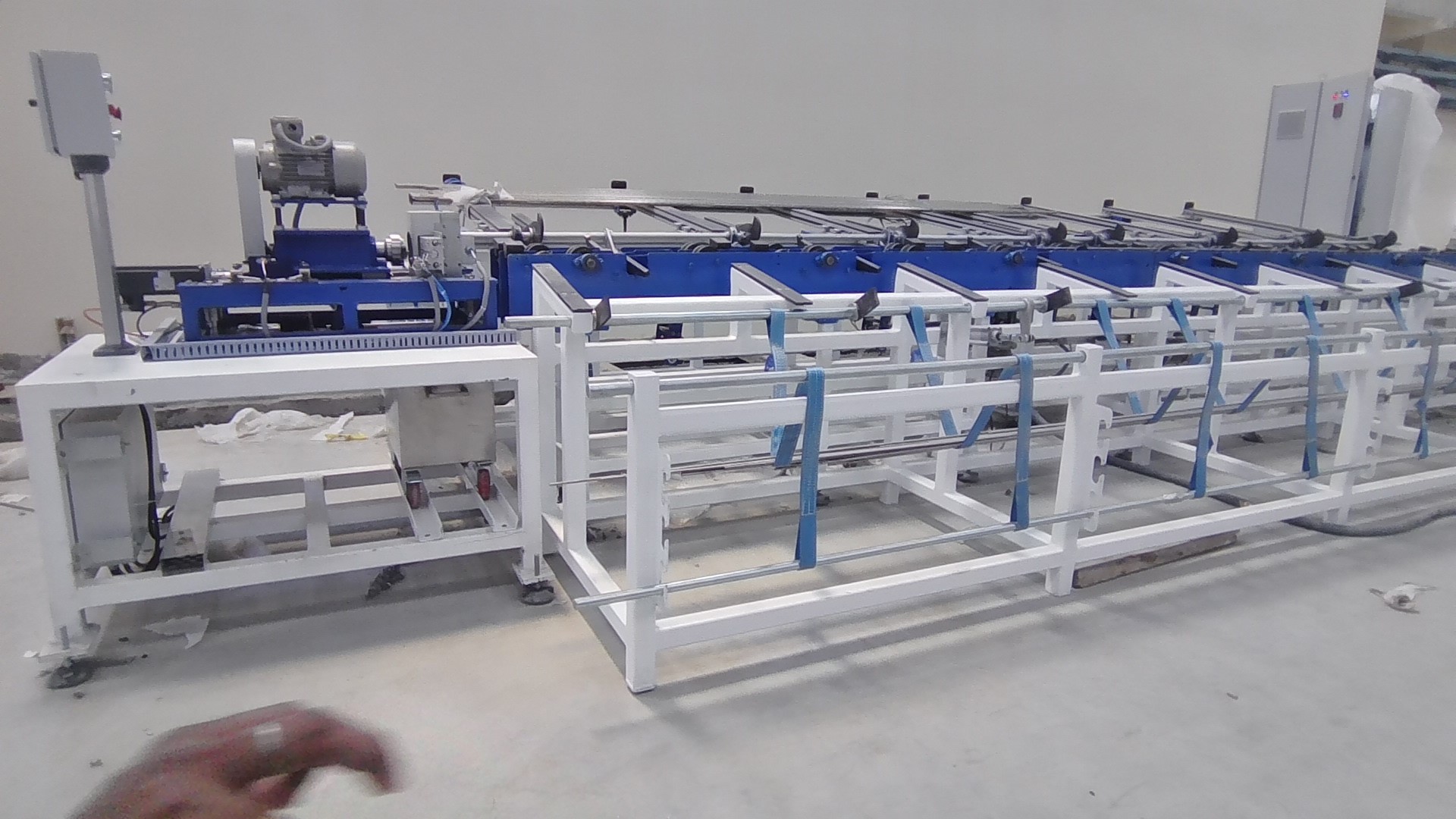

End Facing & ID/OD Chamfering Machine

Purpose:
Prepares both ends of the tubes by precisely facing and chamfering the inner and outer diameters. This is crucial for welding, leak-free joint formation, or smooth assembly.

Key Features:

  • Dual-end processing in a single setup
  • Clean, burr-free chamfering on ID and OD
  • Adjustable depth and angle of chamfer
  • Supports a wide range of tube diameters and wall thicknesses
  • Rigid tool mounting for long-term dimensional accuracy
Ideal For:  Boiler tubes, hydraulic lines, heat exchanger tubes, and structural steel tubing.
WIN_20240427_13_12_13_Pro
WIN_20240427_13_12_29_Pro
WIN_20240427_13_18_46_Pro
WIN_20240427_13_13_15_Pro
WIN_20240427_13_13_55_Pro
WIN_20240427_13_18_09_Pro

OD Grinding Machine

Purpose:
Achieves a smooth and dimensionally precise finish on the outer surface of tubes. Perfect for applications where surface uniformity and diameter control matter.

Key Features:

  • High-speed OD grinding with micron-level accuracy
  • Adjustable feed rate and contact pressure
  • Suitable for stainless steel, mild steel, copper, and alloy tubes
  • Dust collection and coolant system for heat management
  • Customizable for different tube lengths and diameters

Ideal For:
Tubes used in medical devices, aerospace, instrumentation, and automotive components.

1
2
3

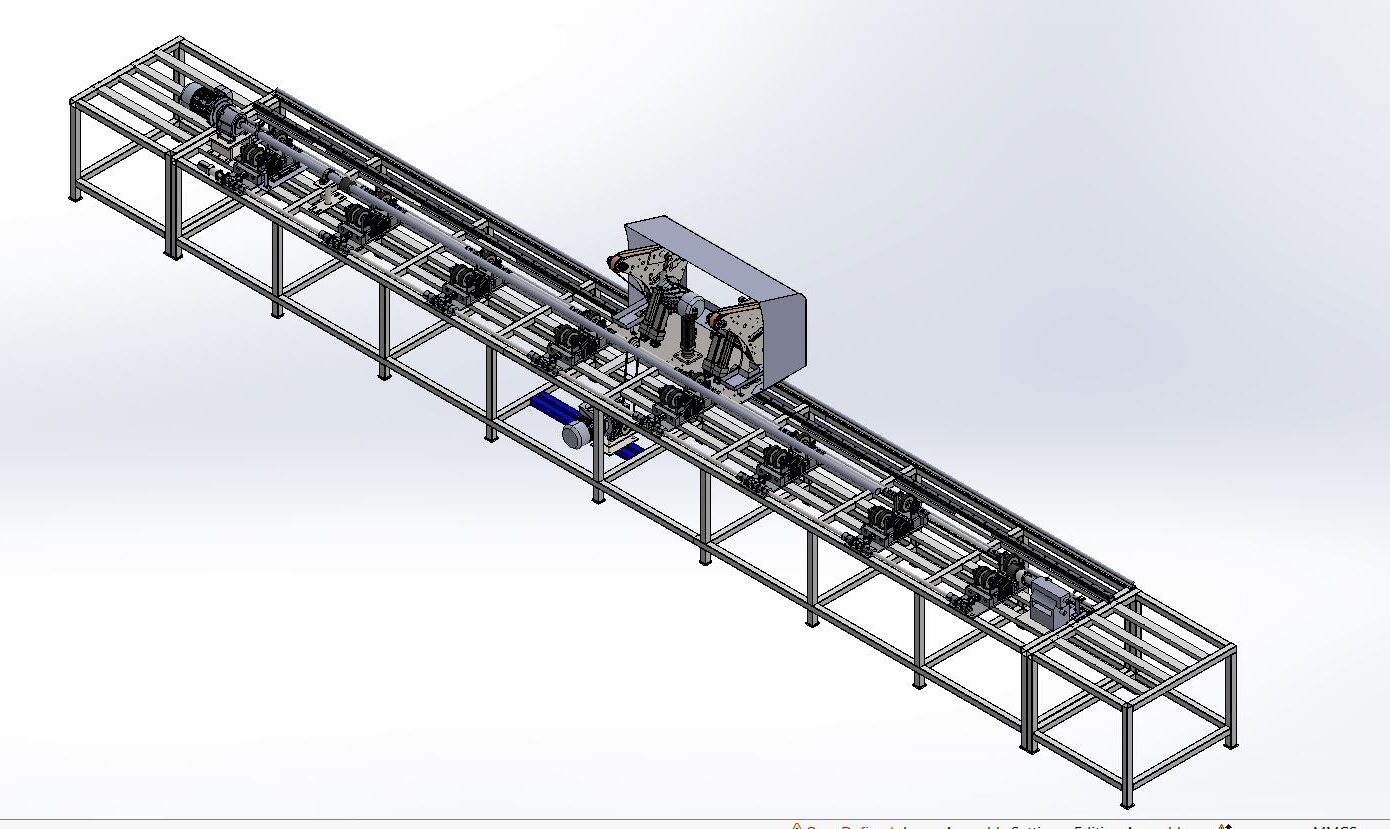

ISO VIEW
ISO View 1
ISO View 2
SIDE VIEW

Tube Buffing Machine

Key Features:

  • Automated surface preparation for tubes prior to testing or coating.
  • Uniform buffing across tube surfaces using programmable rotary and linear motion.
  • Compatible with different abrasives and buffing wheels.
  • Improves test reliability by removing oxides and contaminants.

Precise Patch Grinding Machine

Purpose: Targets specific areas on the tube surface for grinding—typically to remove surface flaws, weld seams, or coatings without affecting the entire tube.

Key Features:

  • Pinpoint grinding of patches, weld beads, or local defects
  • Fine control over depth and surface finish
  • Digital positioning for accurate alignment with flaw zones
  • Optional camera/vision system for defect location mapping
  • Compact footprint for integration in production lines
Ideal For: Repair stations, QA rework zones, and inspection-based patch correction.
1
2
3
4
5

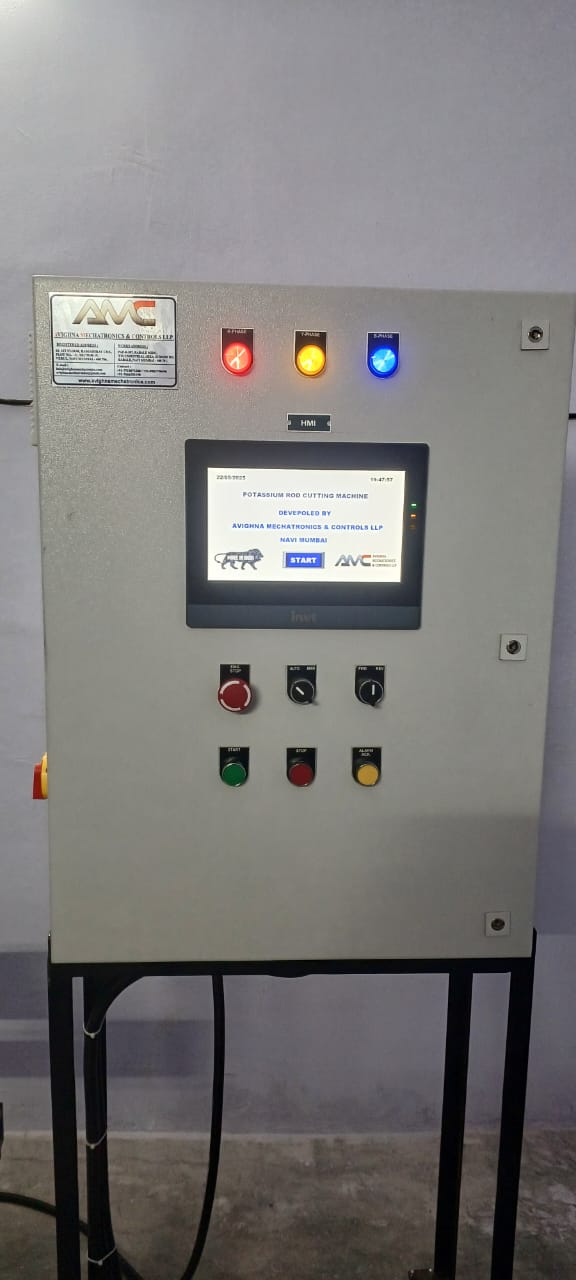

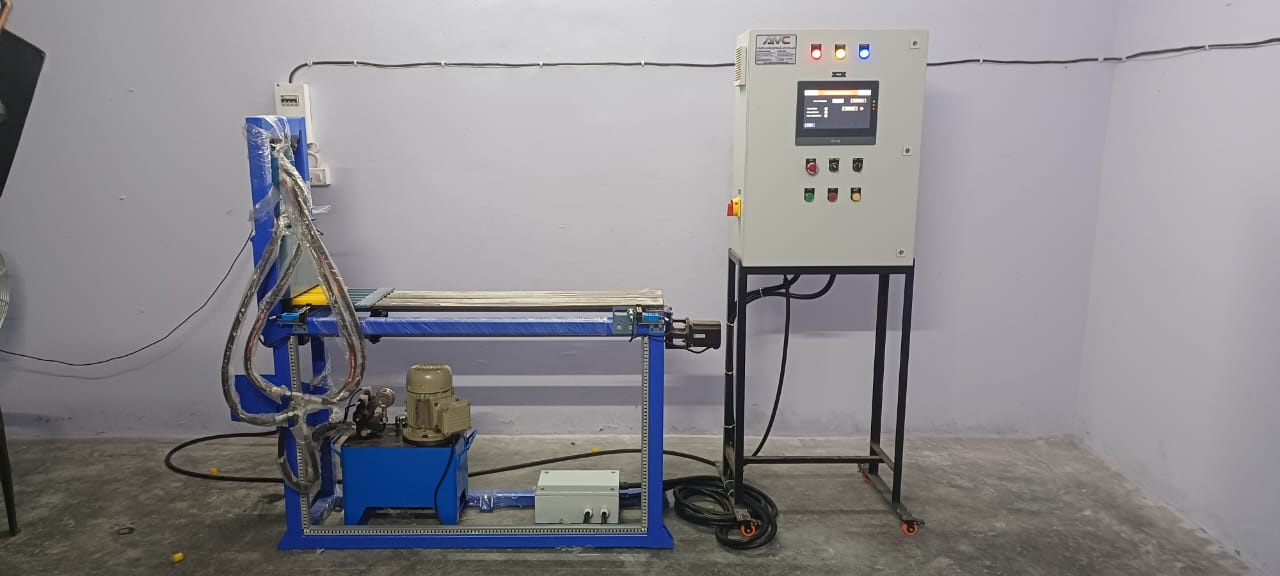

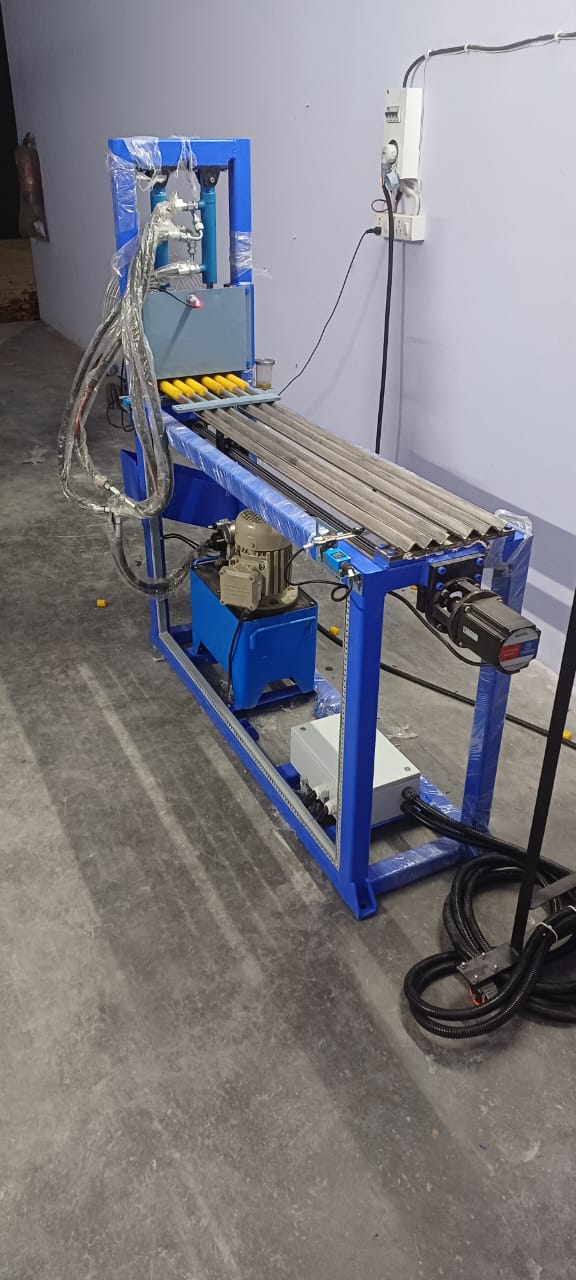

Rod Cutting Machine (Soft Metal Rods)

Purpose: Automates the clean, repeatable cutting of non-ferrous soft metal rods like aluminum, copper, brass, etc., without material distortion.

Key Features:

  • Precision shearing or sawing mechanism (based on application)
  • Programmable cut lengths with tight tolerance
  • High-speed operation with minimal material loss
  • Burr-free cut surfaces, ready for further processing
  • Safety features for operator protection during continuous use

Ideal For:
Electrical rods, plumbing fittings, connectors, and lightweight structural rods.
