Manipulator for Radiography
Designed for high-precision X-ray inspection applications, these manipulators are built to handle various object geometries and radiography setups. The system supports both film-based and digital (flat panel detector) radiography, ensuring compatibility across inspection methods.
Models Displayed

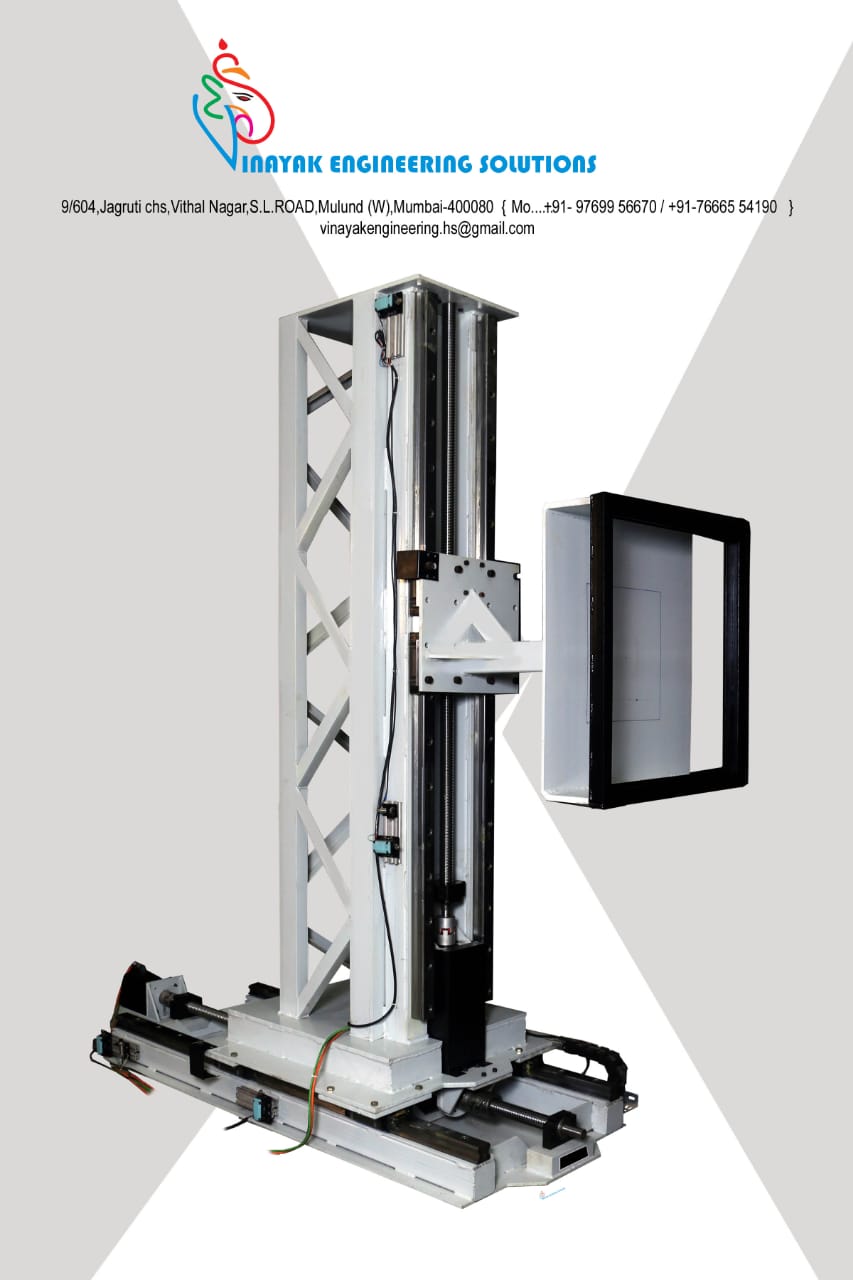

- ● Model 1 – [First manipulator image]

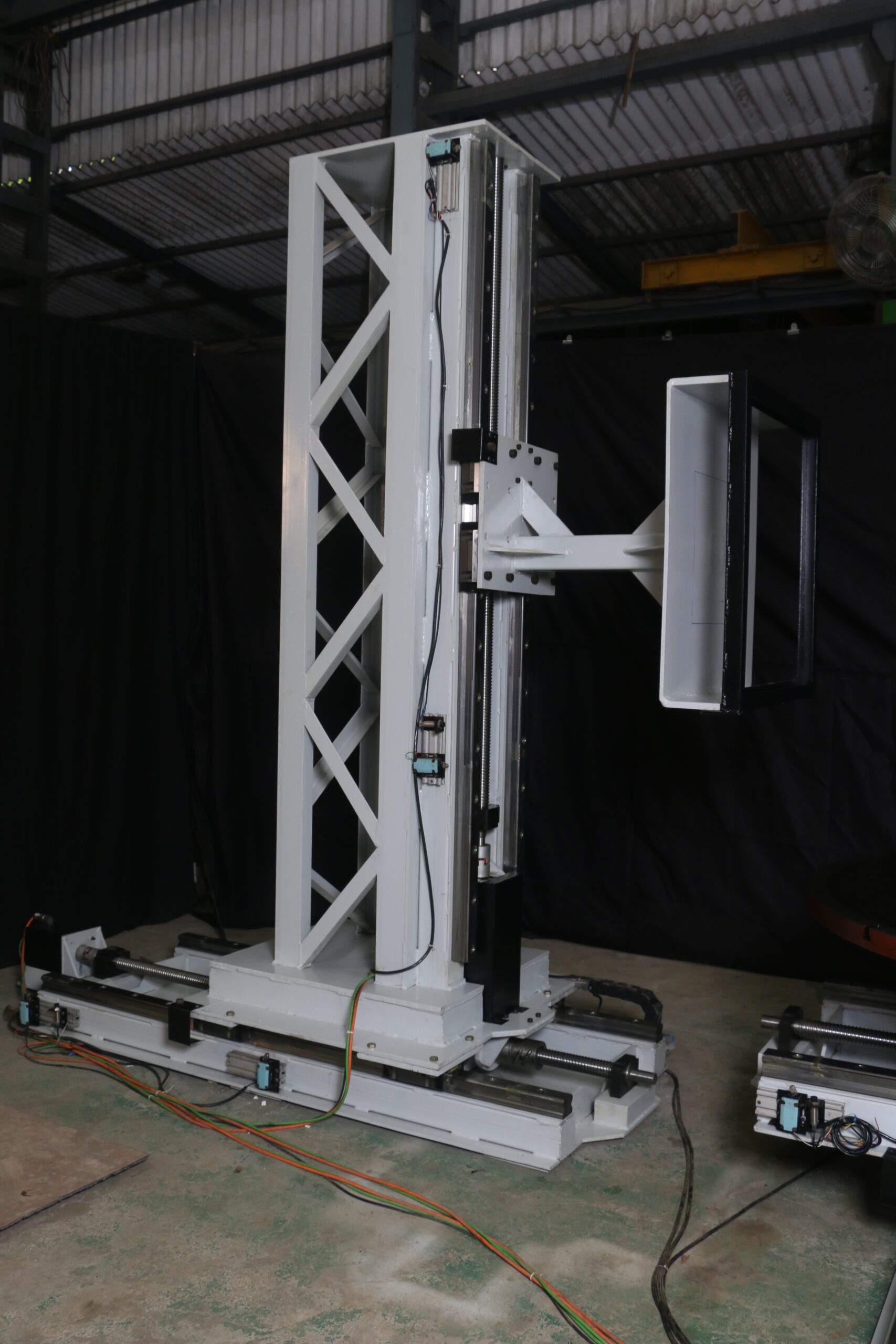

- ● Model 2 – [Second manipulator image]
i. Manipulator for Linac Radiography
Key Features:
- Flat Panel Detector Support – Compatible with modern digital radiography setups using flat panel detectors.
- Lead Shielding for Film Detectors – Ensures safe film-based radiography by integrating radiation shielding for the detector unit.
- Manipulator for Horizontally Placed Objects – Enables accurate scanning of long components or objects laid flat.
- Turntable for Vertically Placed Objects – Provides 360° rotational access for vertically positioned components.
- Dedicated Linac Manipulation – Built to interface with linear accelerators for high-energy radiography.
- Local & Remote Operations – All axes can be controlled manually or remotely, enhancing safety and flexibility in high-radiation zones.
ii. Manipulator for Radiography 7 Axis
Key Features:
- Flat Panel Detector Manipulation – Allows precise angling and positioning of the detector during inspection.
- Lead Shielded Film Detector Mounts – Optimized for film-based radiography safety.
- Object Manipulation Mechanism – Handles various object types and shapes for full positional control.
- X-Ray Source Manipulator – Positions the radiographic source with high repeatability and safety.
- 7-Axis Control – Enables complex positioning for hard-to-reach inspection angles.
- Local & Remote Operations – Supports both manual adjustments and remote system control.

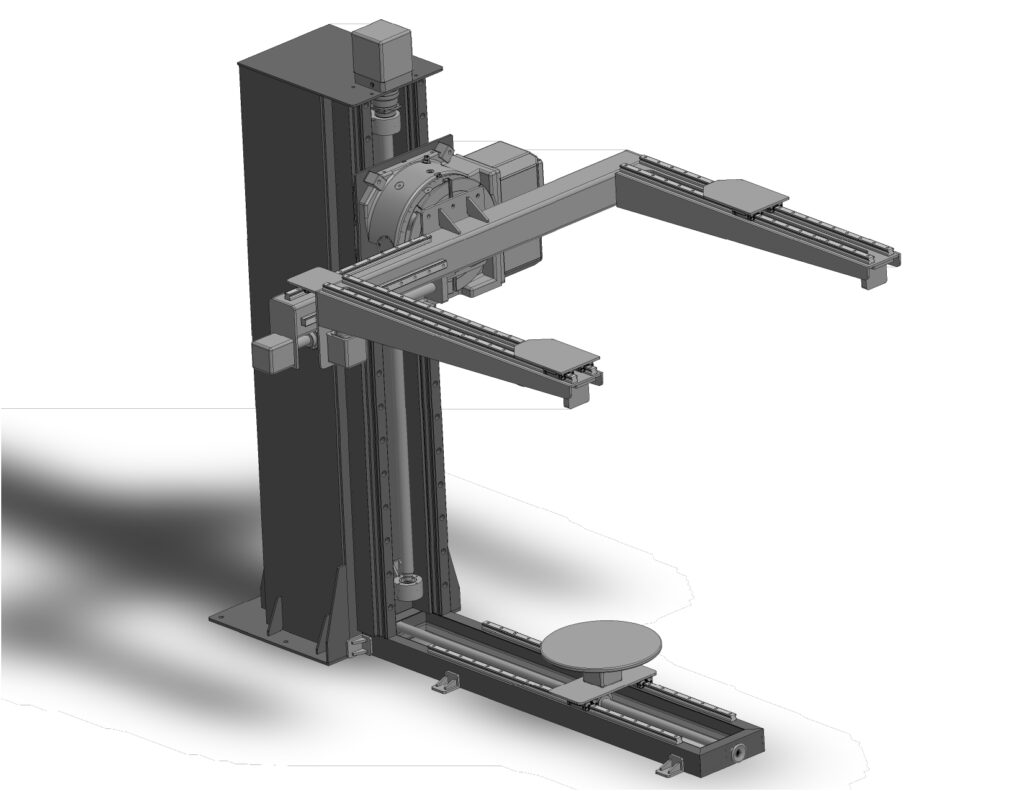

iii. Manipulator for Radiography 5 Axis
Key Features:
- Integrated Movement for X-Ray Source & Detector – Synchronized control ensures accurate alignment and movement.
- Turntable for Object Manipulation – Offers 360° rotation for full coverage during imaging.
- 5-Axis Operation – Offers flexibility in object orientation, detector alignment, and X-ray beam targeting.
- Local & Remote Operation – Improves operator safety and accessibility.
iv. Manipulator for Radiography 4 Axis
Key Features:
- Object Manipulator for Stationary X-Ray System – Designed for scenarios where the X-ray source and detector remain fixed.
- 4-Axis Movement – Allows precise adjustment of object position for accurate image capture.
- Local & Remote Control – Operable from a secure control room or on-site.
Purpose:
Combines XYZ movement with a fourth-axis rotation (Theta), making it ideal for manipulating components under fixed sensors or sources.
Manipulator for Ultrasonic Testing (UT)
Tailored for ultrasonic inspection systems, these manipulators offer stable and repeatable motion control to ensure accurate probe positioning.
Tube Positioning System for NDE
Key Features:
- Precision rotation and linear adjustment of tubes for internal and external ultrasonic scanning.
- Compatible with various probe holders and couplant delivery systems.
- Stable fixture design for small to large diameter tubes.
- Designed for in-service inspection and new component testing.
Rod Positioning Manipulator (Special Application)
Key Features:
- Engineered for the ultrasonic or visual inspection of long rods, shafts, or bar stocks.
- Customizable carriage and clamp systems to fit rod length and diameter.
- Integrated linear and rotary actuators for smooth motion.
- Ideal for aerospace, nuclear, and high-reliability component testing.
Tube Buffing Machine
Key Features:
- Automated surface preparation for tubes prior to testing or coating.
- Uniform buffing across tube surfaces using programmable rotary and linear motion.
- Compatible with different abrasives and buffing wheels.
- Improves test reliability by removing oxides and contaminants.
